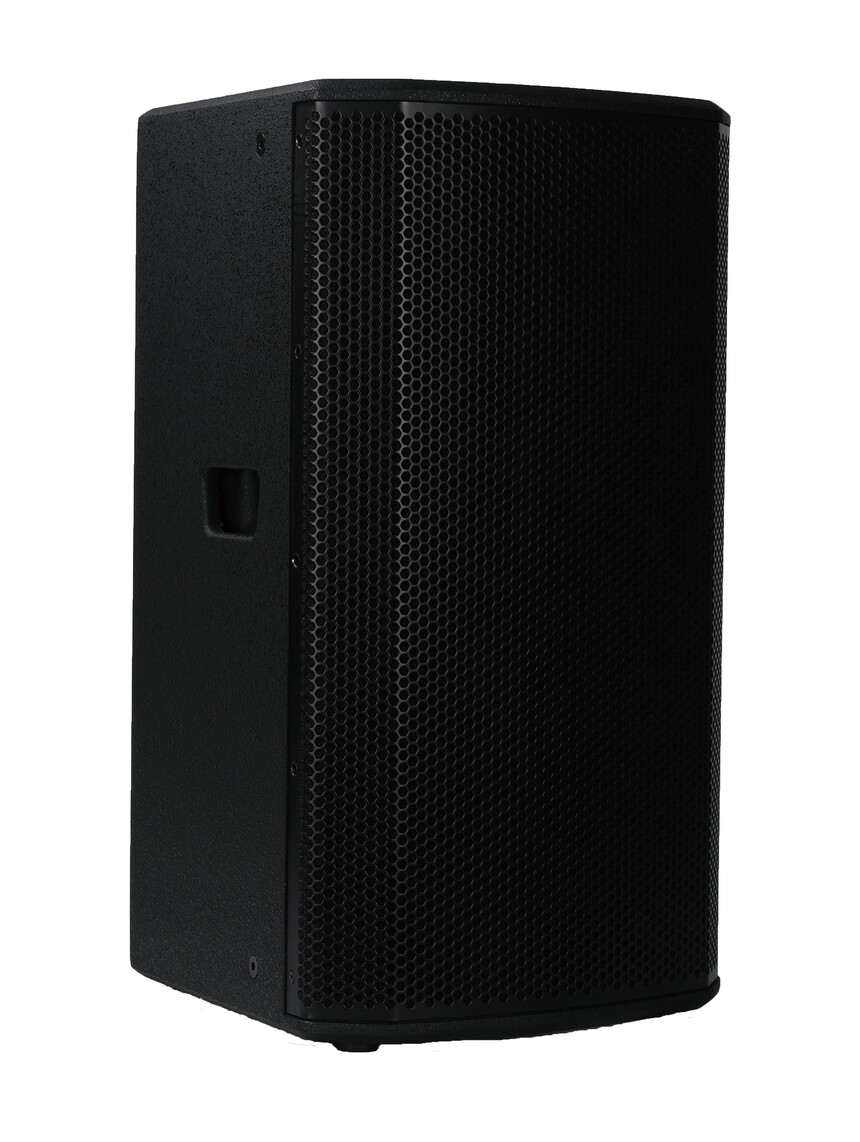

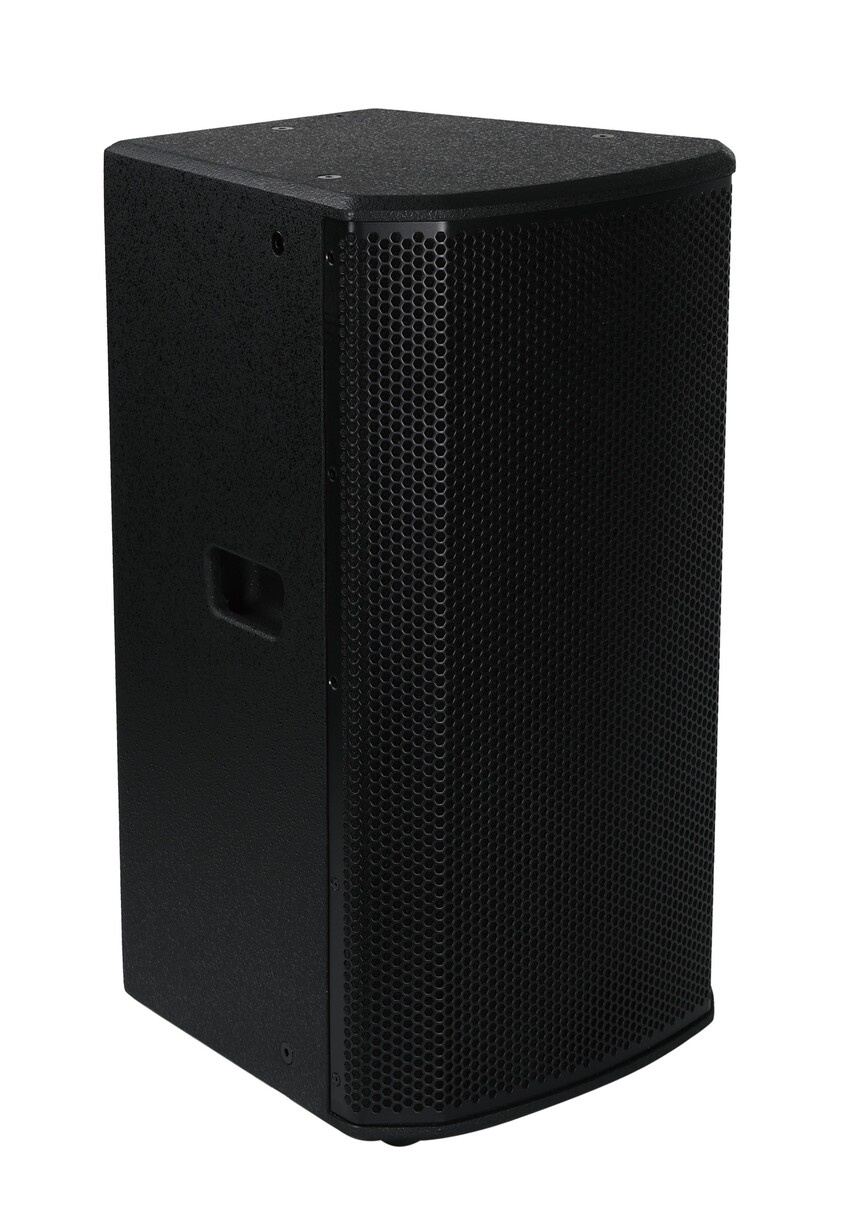

GS12 2-Way Passive Vented Loudspeaker

Low Frequency Driver: 1×12-inch woofer with 3-inch high-temperature resistant voice coil, optimized ferrite magnetic circuit design

High Frequency Driver: Imported Celestion compression driver, 1-inch throat, 1.75-inch high temperature resistant voice coil

Power Rating: 400W RMS, 1600W Peak

Frequency Response (-10dB): 55Hz-20kHz

Sensitivity (1W/1m): 94dB

Max Peak SPL (1m): 126dB

Nominal Impedance: 8Ω

Coverage Angle: 90° Horizontal × 60° Vertical

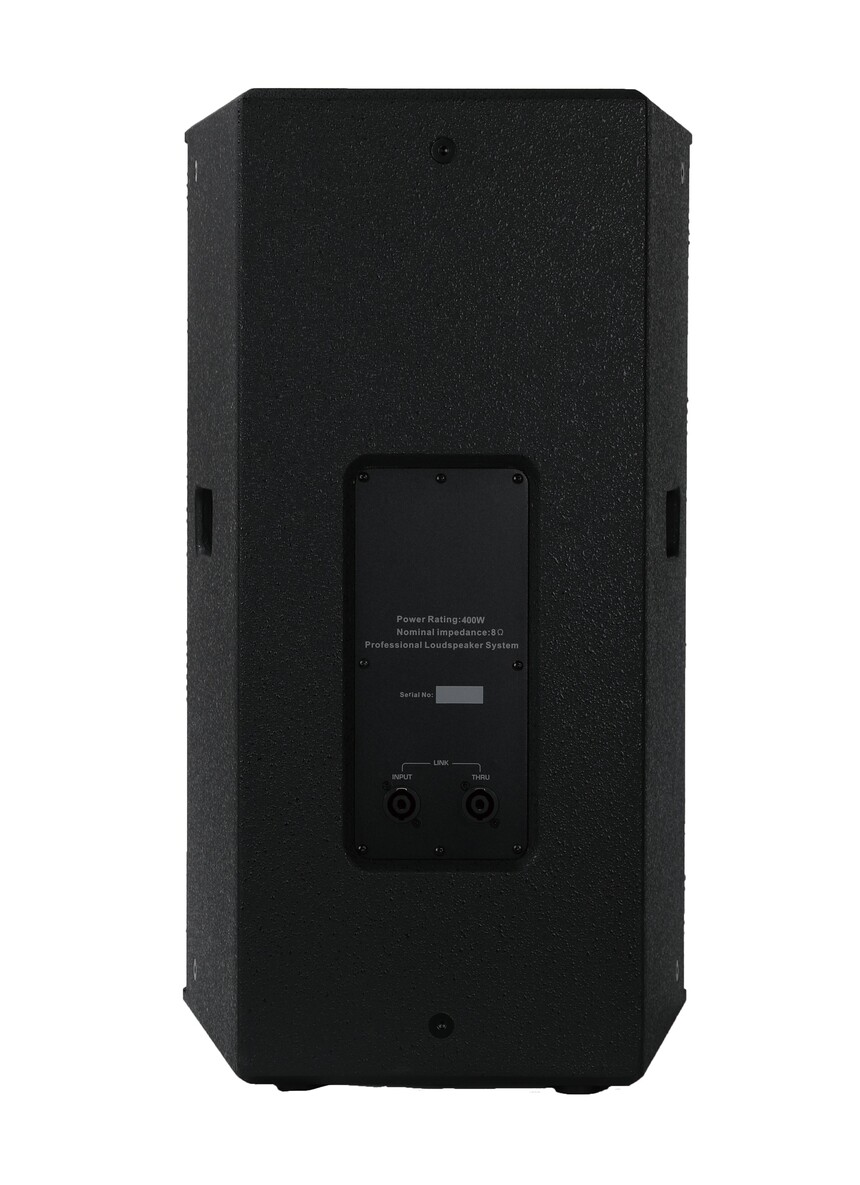

Input Terminal: 2 parallel speaker sockets with electronic high-frequency protection circuit

Installation: 1×Φ35mm standard bottom pole hole, 12 pieces M8 hanging mounting points
