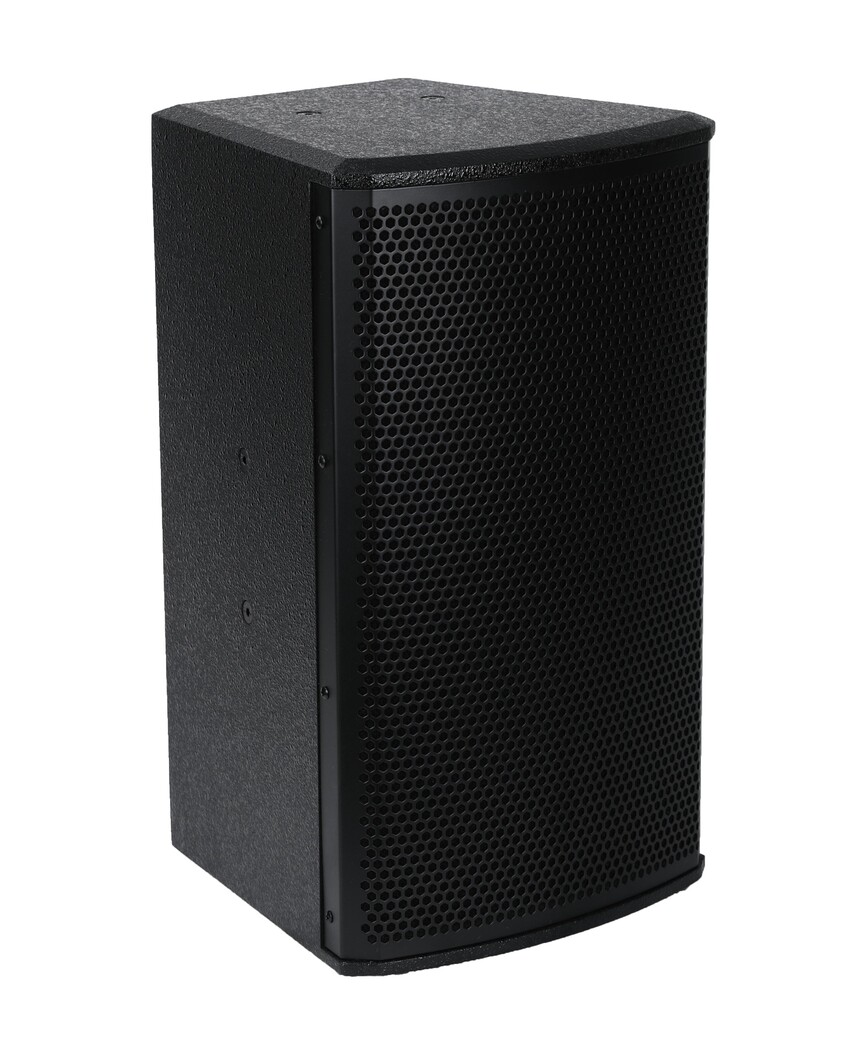

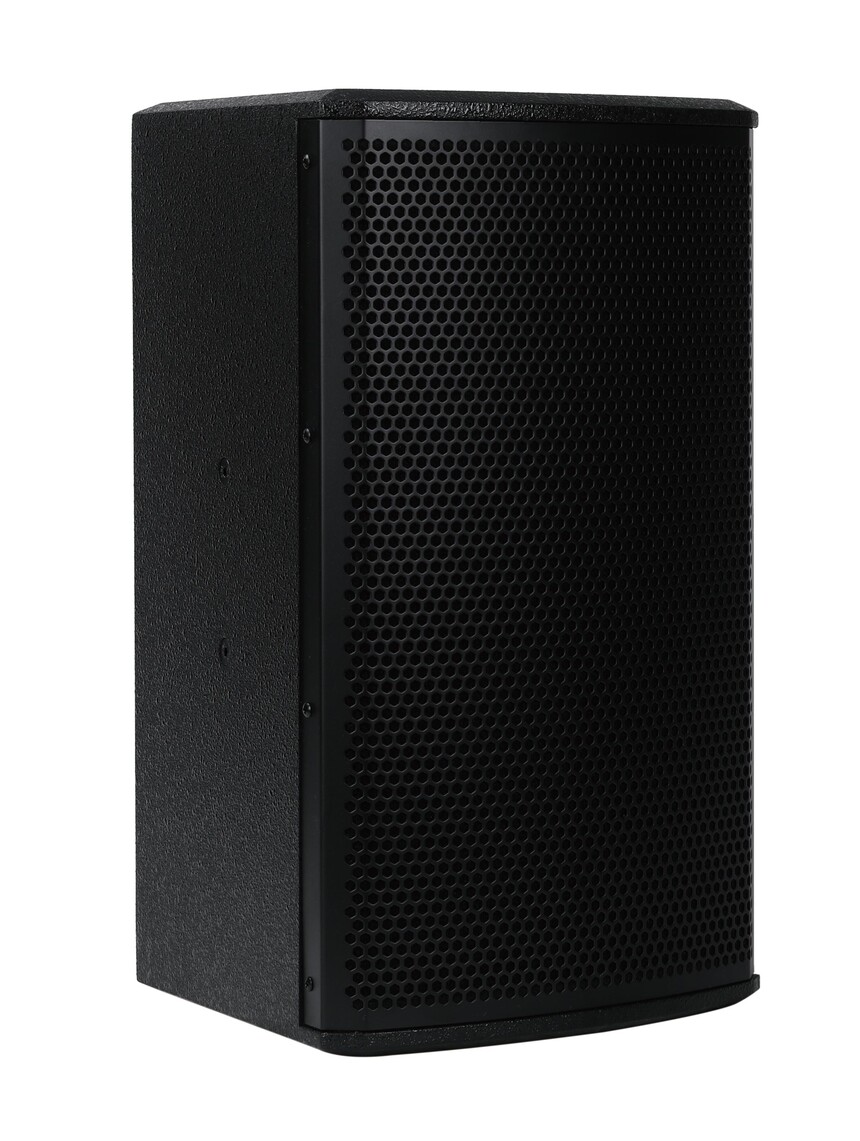

GM10 2-Way Passive Vented Loudspeaker

Low Frequency Driver: 10"(255mm) woofer with 2"(50mm) voice coil, ferrite magnetic circuit design

High Frequency Driver: 1-inch tweeter with 1.35-inch voice coil and ferrite magnet, composite dome diaphragm

Power Handling: 180W RMS, 720W Peak

Nominal Impedance: 8Ω

Frequency Response (-10dB): 70Hz–20kHz

Sensitivity (1W/1m): 92dB Max SPL (1m): 120dB

Coverage Angle: 90° Horizontal × 60° Vertical

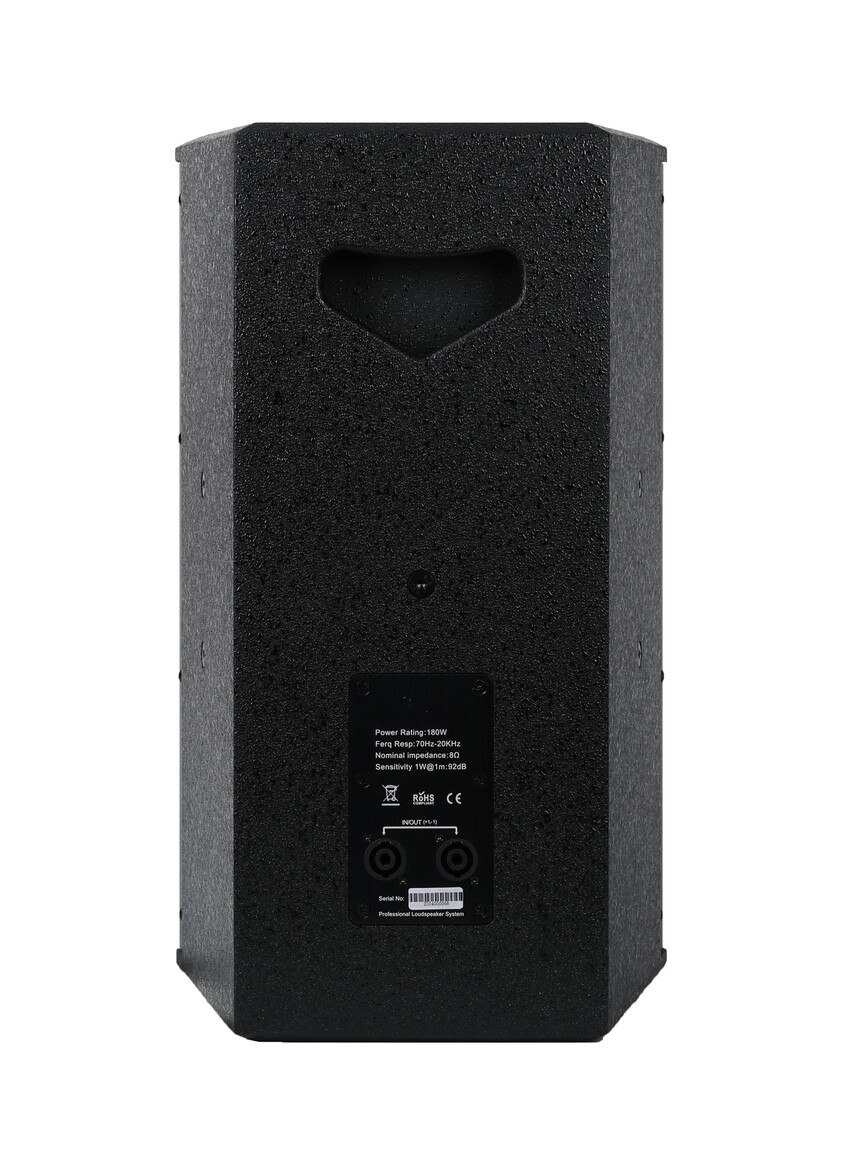

Input Terminal: 2 parallel speaker terminals

Installation: 1×Φ35mm standard bottom pole socket, fitted with 12pcs M8 hanging mounting points

Dimensions: 510×310×300mm Net Weight: 13.5kg
