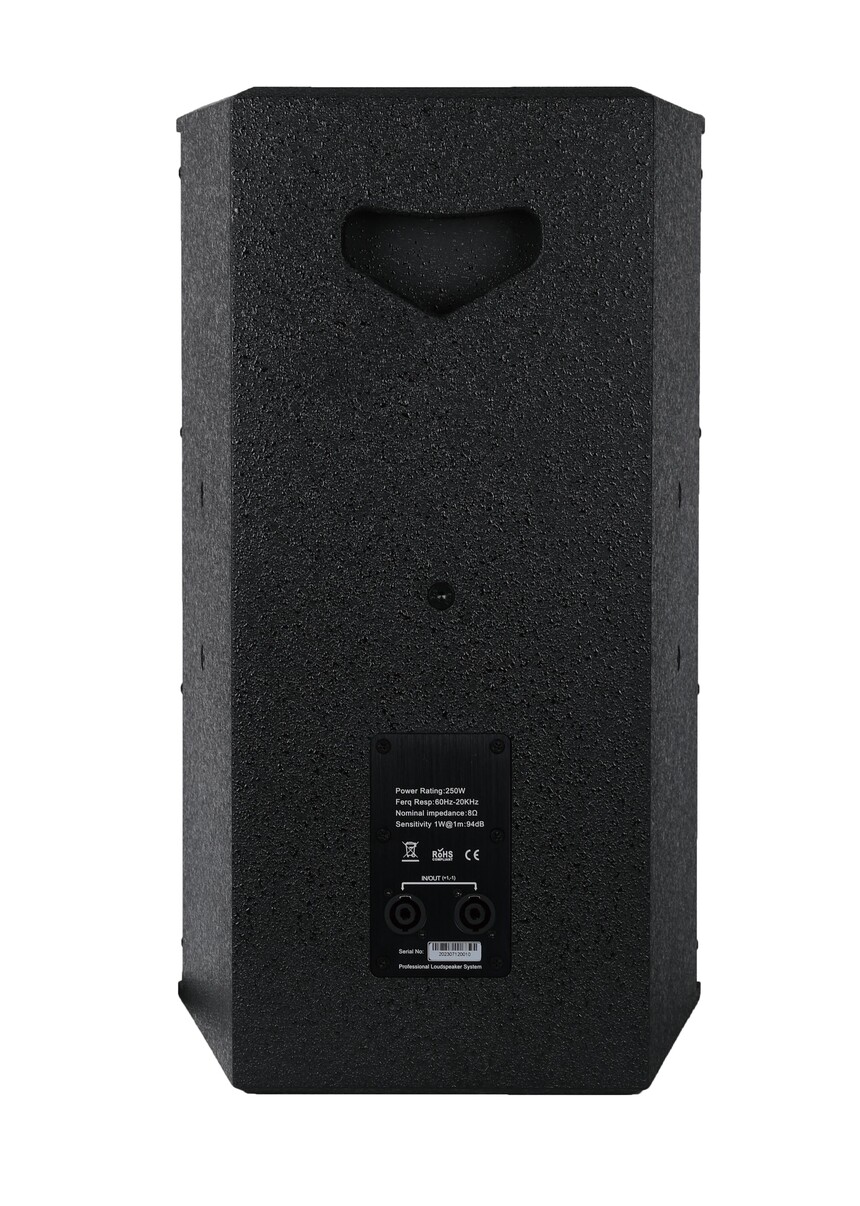

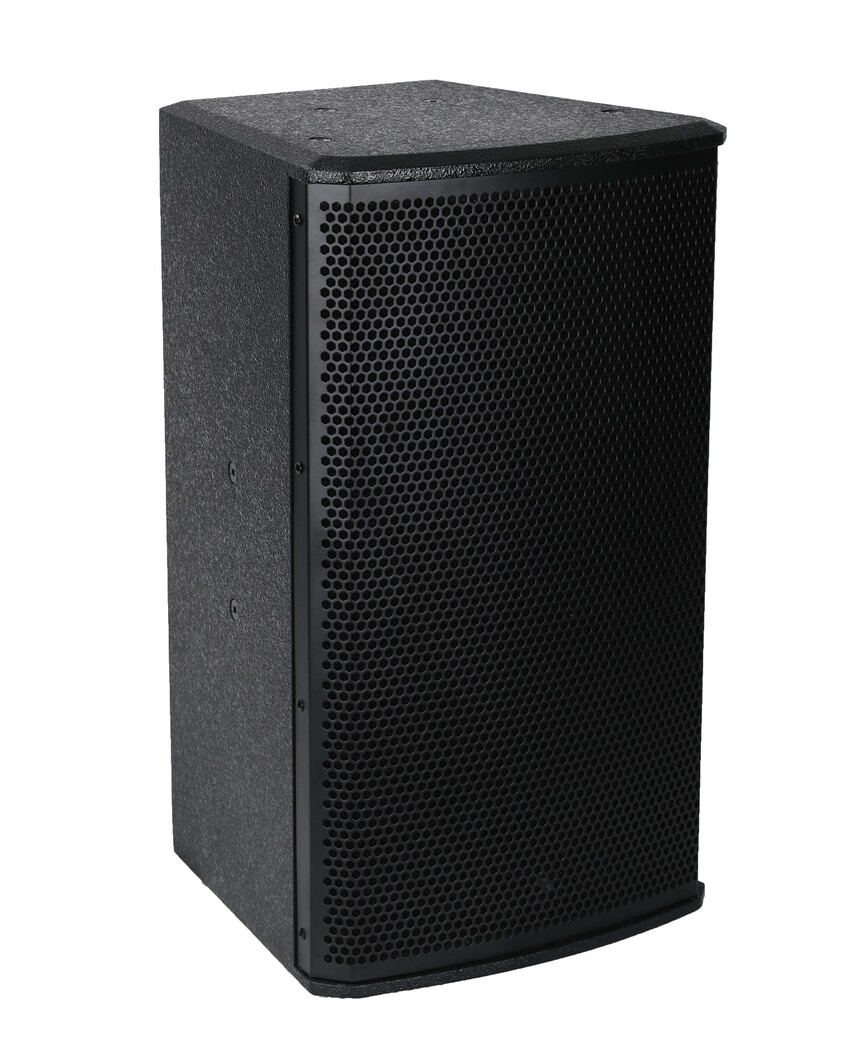

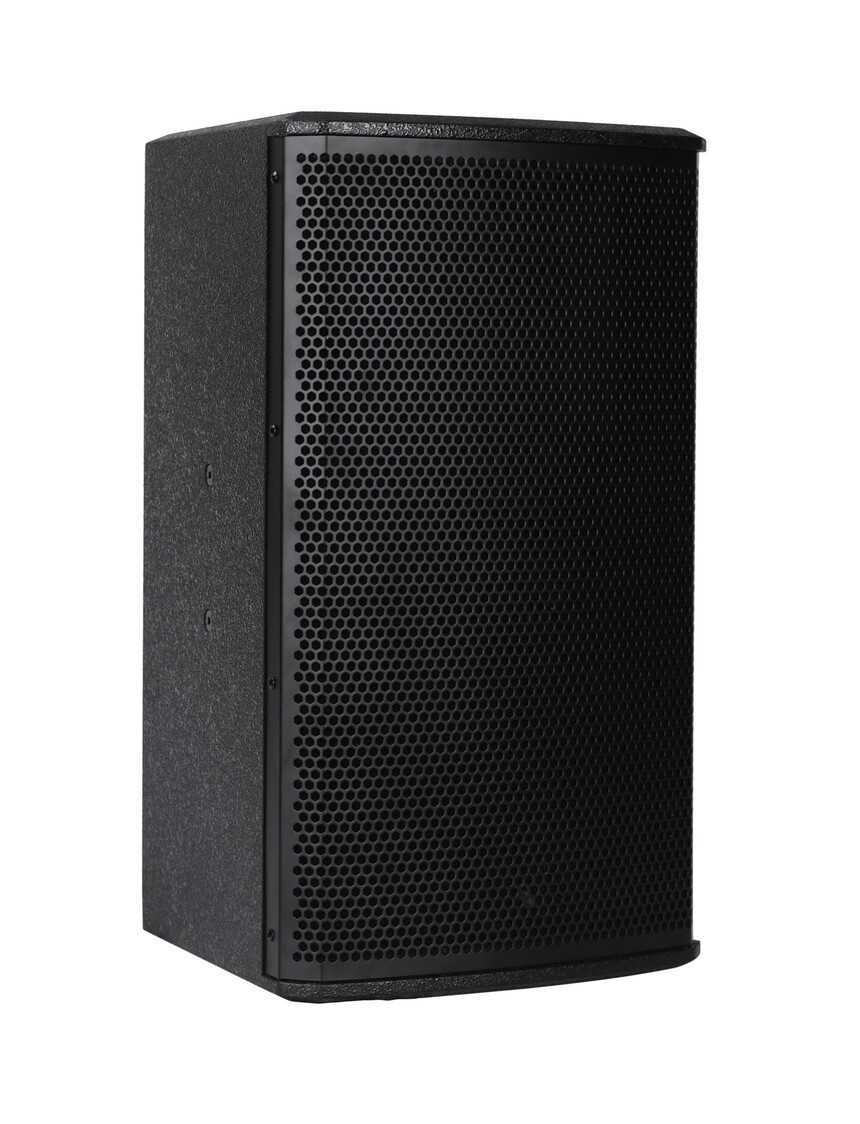

GM12 2-Way Passive Vented Loudspeaker

Low Frequency Driver: 12"(305mm) woofer with 2.5"(65mm) voice coil, ferrite magnetic circuit design

High Frequency Driver: 1-inch tweeter with 1.75-inch voice coil, ferrite magnet and composite dome diaphragm

Power Handling: 250W RMS, 1000W Peak

Nominal Impedance: 8Ω Frequency Response (-10dB): 65Hz–20kHz

Sensitivity (1W/1m): 94dB Max SPL (1m): 124dB

Coverage Angle: 90° Horizontal × 60° Vertical

Input Terminal: 2 parallel speaker terminals

Installation: 1×Φ35mm standard bottom pole socket, equipped with 12pcs M8 suspension points

Dimensions: 580×340×330mm Net Weight: 17.8kg
