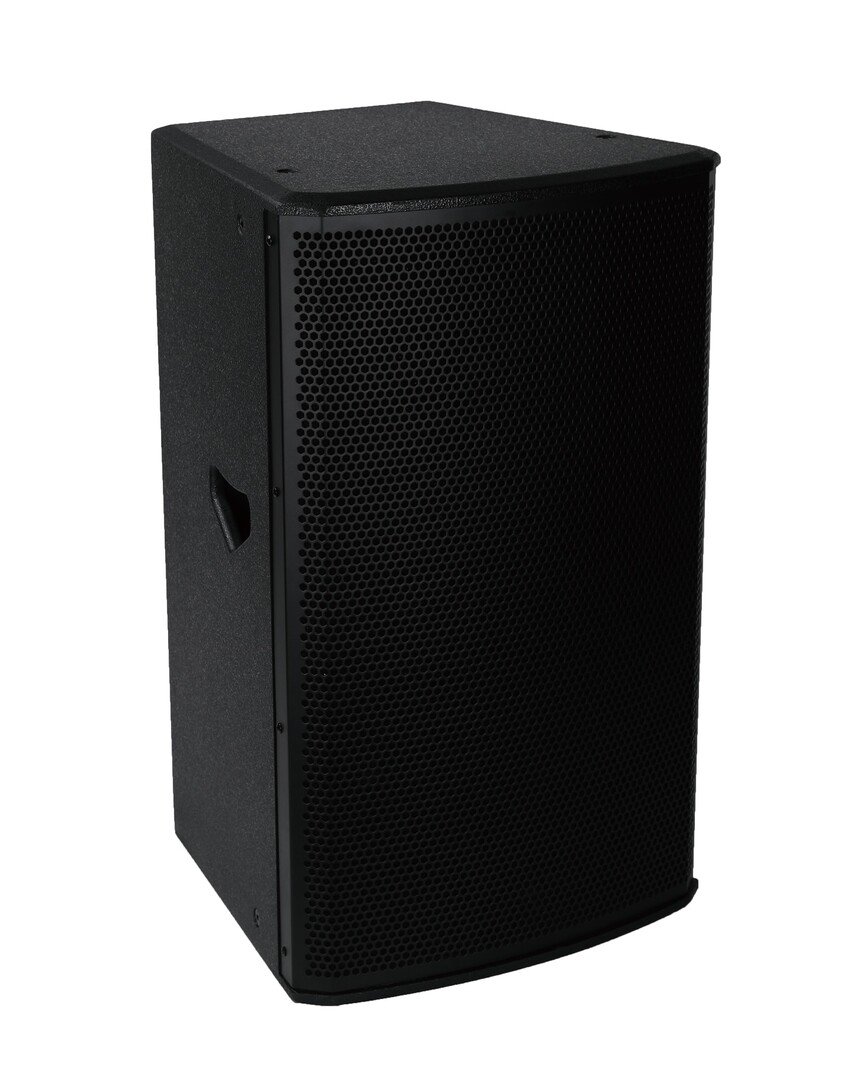

GM15 2-Way Passive Vented Loudspeaker

Low Frequency Driver: 15"(381mm) woofer with 2.5"(65mm) voice coil, ferrite magnetic circuit design

High Frequency Driver: 1-inch tweeter with 1.75-inch voice coil, ferrite magnet and composite dome diaphragm

Power Handling: 350W RMS, 1400W Peak

Nominal Impedance: 8Ω

Frequency Response (-10dB): 65Hz–20kHz

Sensitivity (1W/1m): 95dB Max SPL (1m): 126dB

Coverage Angle: 90° Horizontal × 60° Vertical

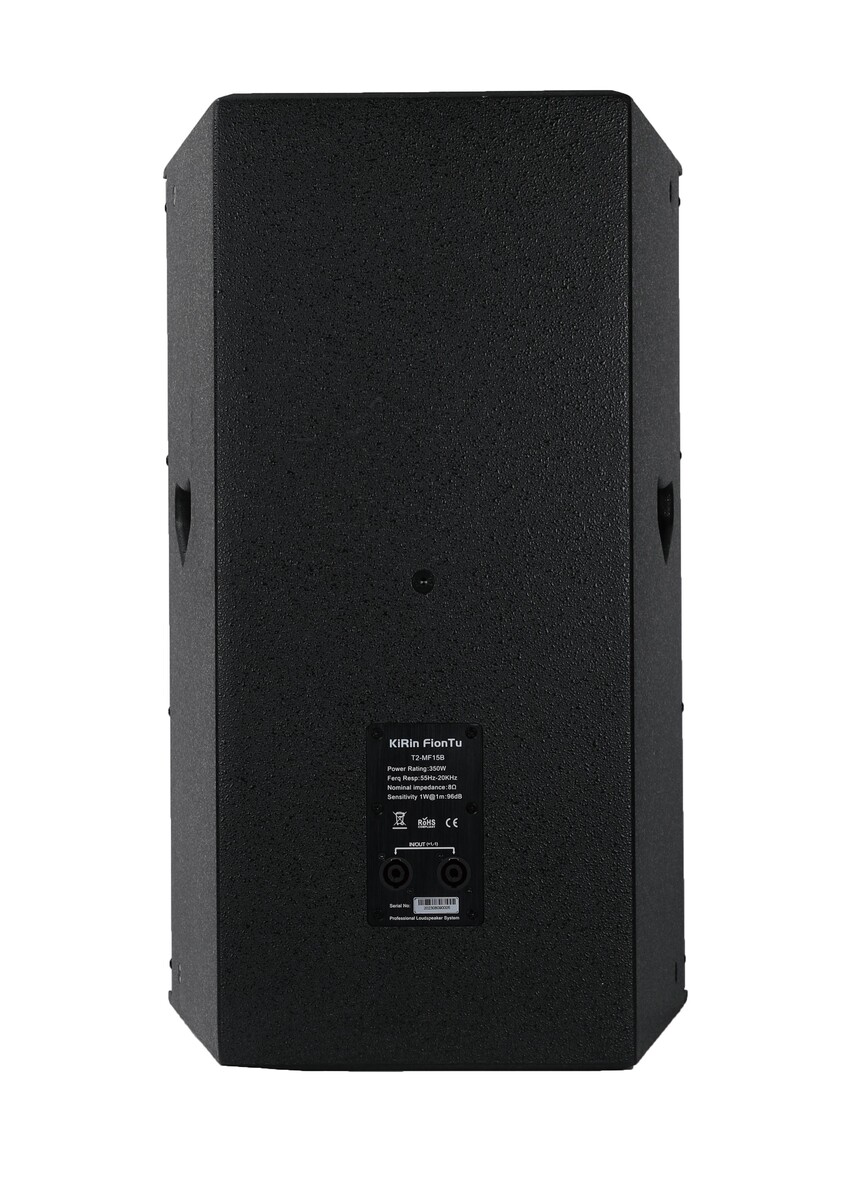

Input Terminal: 2 parallel speaker terminals

Installation: 1×Φ35mm standard bottom pole socket, equipped with 12pcs M8 suspension mounting points

Dimensions: 680×416×410mm Net Weight: 25kg
