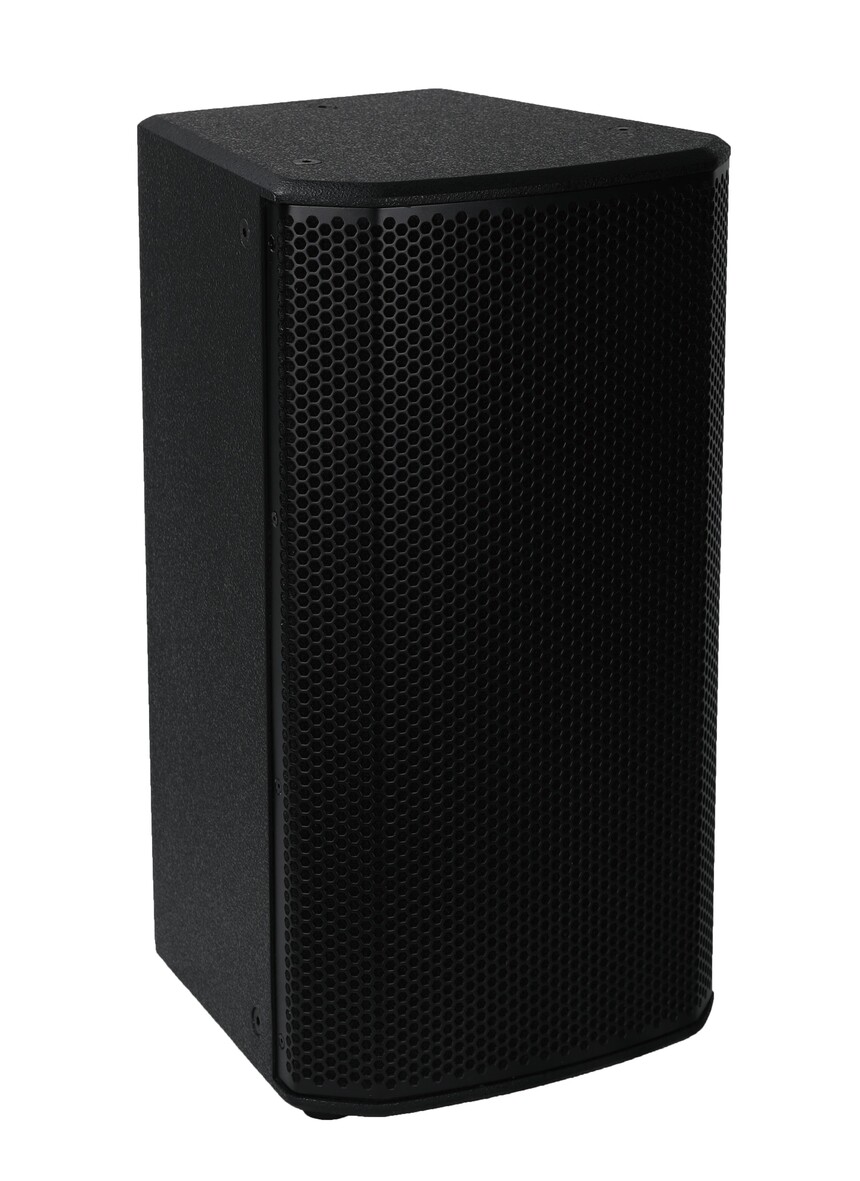

GS10 2-Way Passive Vented Loudspeaker

Low Frequency Driver: 1×10-inch woofer with 2.5-inch high-temperature resistant voice coil, optimized ferrite magnetic circuit design

High Frequency Driver: Imported Celestion compression driver, 1-inch throat, 1.75-inch high temperature resistant voice coil

Power Rating: 300W RMS, 1200W Peak

Frequency Response (-10dB): 60Hz–20kHz

Sensitivity (1W/1m): 93dB Max Peak SPL (1m): 124dB

Nominal Impedance: 8Ω Coverage Angle: 90° Horizontal × 60° Vertical

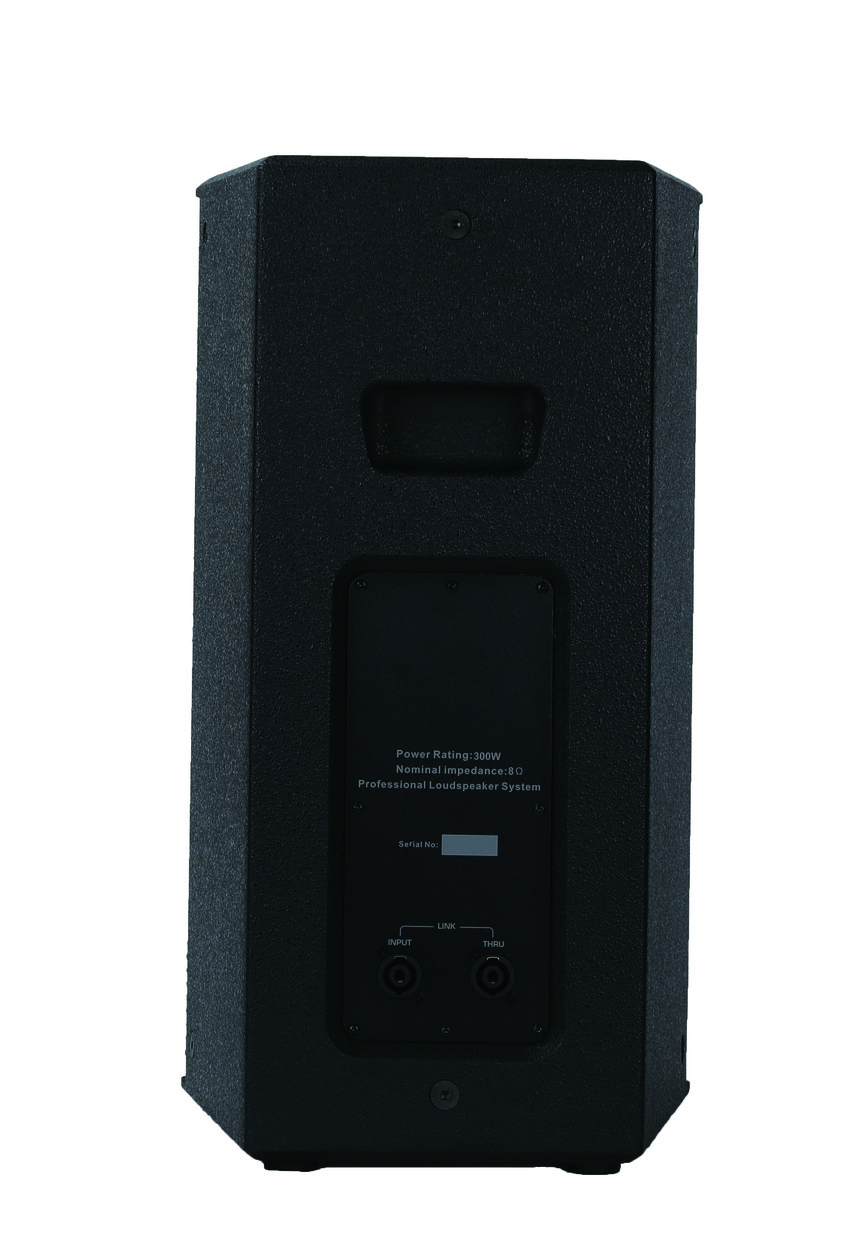

Input Terminal: 2 parallel speaker connectors with electronic high-frequency protection circuit

Installation: 1×Φ35mm standard bottom pole socket, 10 sets of M8 suspension mounting points
