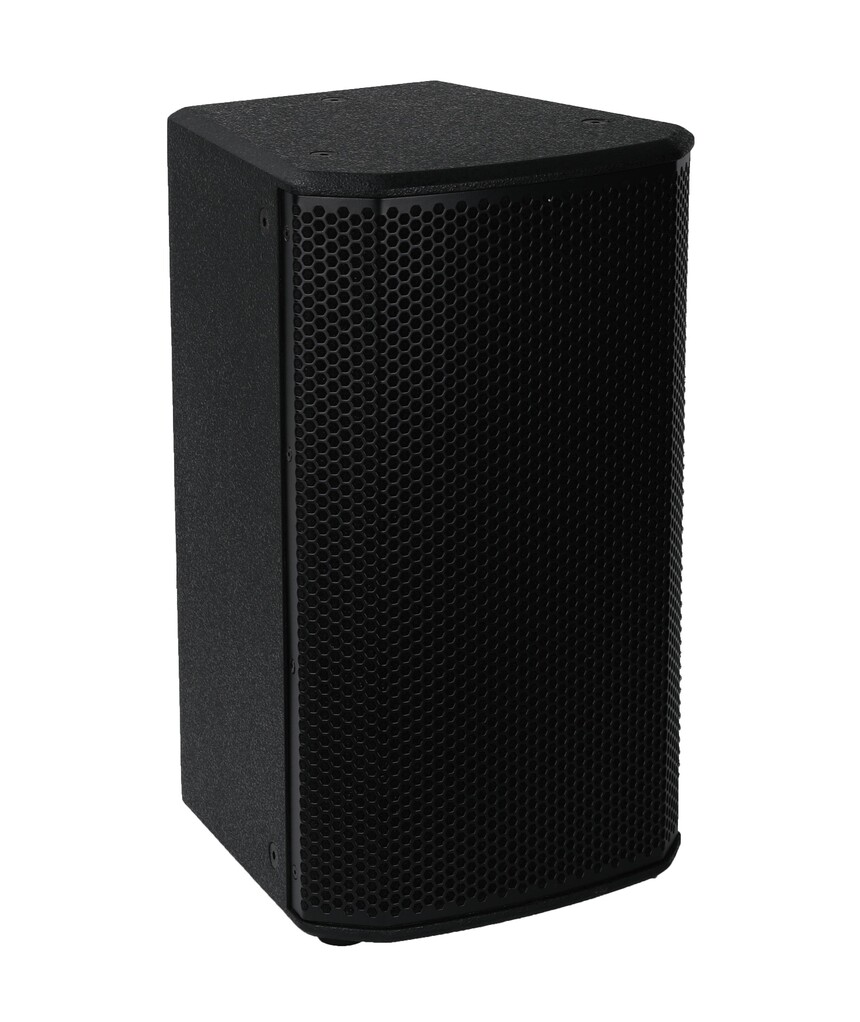

GS-8 2-Way Passive Vented Loudspeaker

Low Frequency Driver: 1×8-inch woofer with 2-inch high-temperature resistant voice coil, optimized ferrite magnetic circuit design

High Frequency Driver: Imported Celestion compression driver, 1-inch throat, 1.75-inch high temperature resistant voice coil

Power Rating: 200W RMS, 800W Peak

Frequency Response (-10dB): 65Hz–20kHz

Sensitivity (1W/1m): 92dB

Max Peak SPL (1m): 121dB

Nominal Impedance: 8Ω

Coverage Angle: 90° Horizontal × 60° Vertical

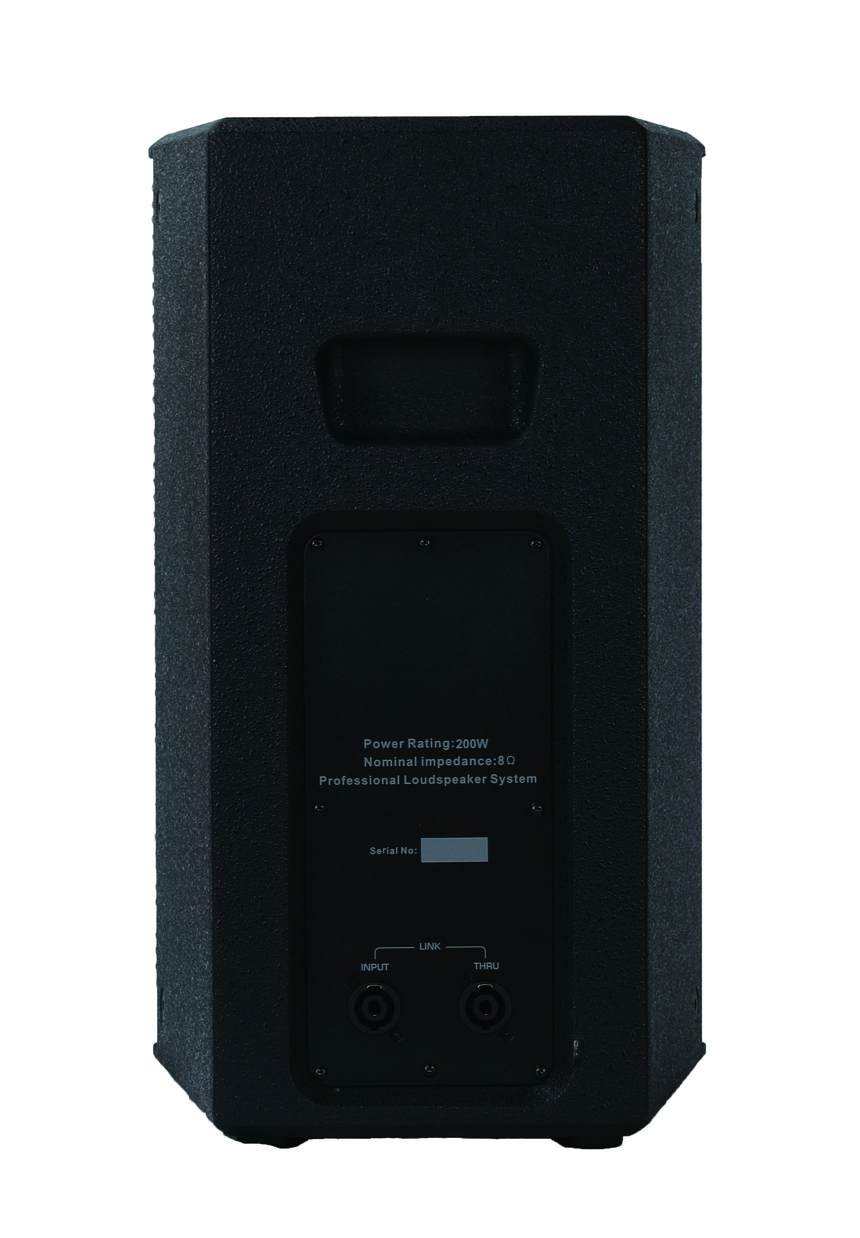

Input Terminal: 2 parallel speaker sockets with built-in high frequency protection circuit

Installation: 1×φ35mm standard bottom pole socket, 10pcs M8 mounting points
